Hydraulic Press

Product Range ::

Motorized Hydraulic Press

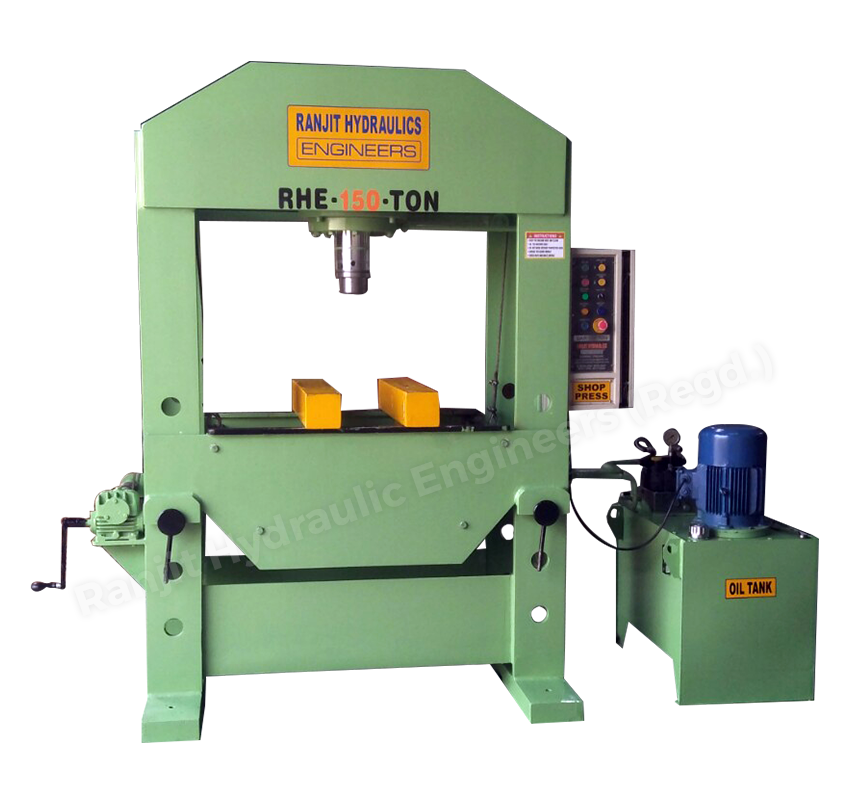

Motorized Hydraulic Press (150 Ton)

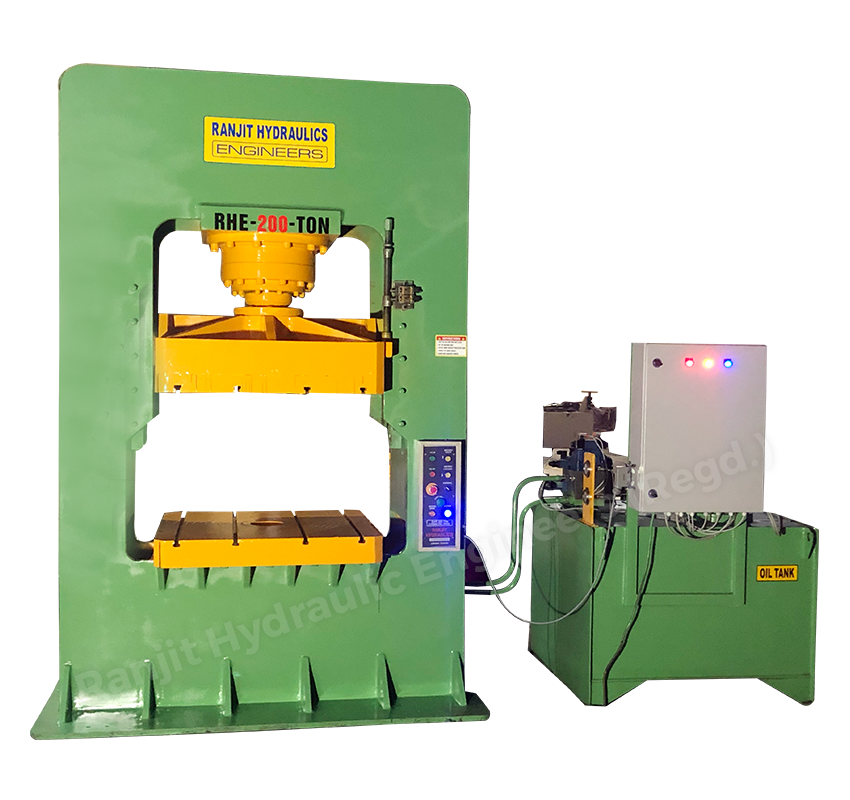

Motorized Hydraulic Press (200 Ton)


TECHNICAL PARAMETERS


Models Capacity Ram Size Daylight Stroke Shut height Table Size
LxW		 Speeds (mm/Sec.) Electric Motor No. of
Cylinders		 Working Ht. Working Pr. Weight of m/c
(Tons) (mm) (mm) (mm) (mm) (mm) Approach Pressing Return (HP.) (mm) (Bar) (Approx) tons
RHHP-5 5 80 300 300 – 350×300 20-25 5-8 30 3 1 (D/A) 700 200 1
RHHP-10 10 100 350 350 – 350×300 25-30 5-8 30 5 1 No.(D/A) 700 200 1.5 to 2
RHHP-15 15 120 400 400 – 400×300 25-30 5-8 30-40 5 1 No.(D/A) 700 200 1.5 to 2
RH HP-20 20 125 400 400 – 400×300 25 5-8 30 5 1 No.(D/A) 700 200 2
RH HP-25 25 125 400 400 – 450×300 25 5-8 30 5 1 No.(D/A) 700 200 2.5
RH HP-30 30 140 400 400 – 450×300 25 5-8 30 5 1 No.(D/A) 700 200 3
RH HP-50 50 200 400 450 – 500×500 70 10-15 80 7.5 1+2 750 200 4
RH HP-80 80 220 450 400 100 600×500 70 10-15 80 7.5 1+2 750 200 4 to 5
RHHP-100 100 250 500 450 150 600×600 80 10-15 90 7.5 1+2 750 200 5
RHHP-125 125 270 700 550 150 600×600 80 10-15 90 10 1+2 750 200 5 to 6
RHHP-150 150 300 700 550 150 650×500 80 10-15 90 15 1+2 750 200 6
RH HP-200 200 350 700 500 200 800×600 80 10-15 90 15 1+2 750 200 9 to 10
RH HP-250 250 400 800 550 250 800×600 100 15-20 110 20 1+2 750 200 10
RH HP-300 300 440 800 600 200 900×700 100 15-20 110 25 1+2 750 200 10 to 11
RH HP-350 350 470 900 600 300 900×700 120 15-20 130 25 1+2 750 200 12
RH HP-400 400 510 900 600 300 1000×800 120 15-20 130 30 1+2 750 200 12 to 13
RH HP-500 500 565 1000 700 300 1200×800 130 20-25 140 40 2+2 750 200 13 to 14
