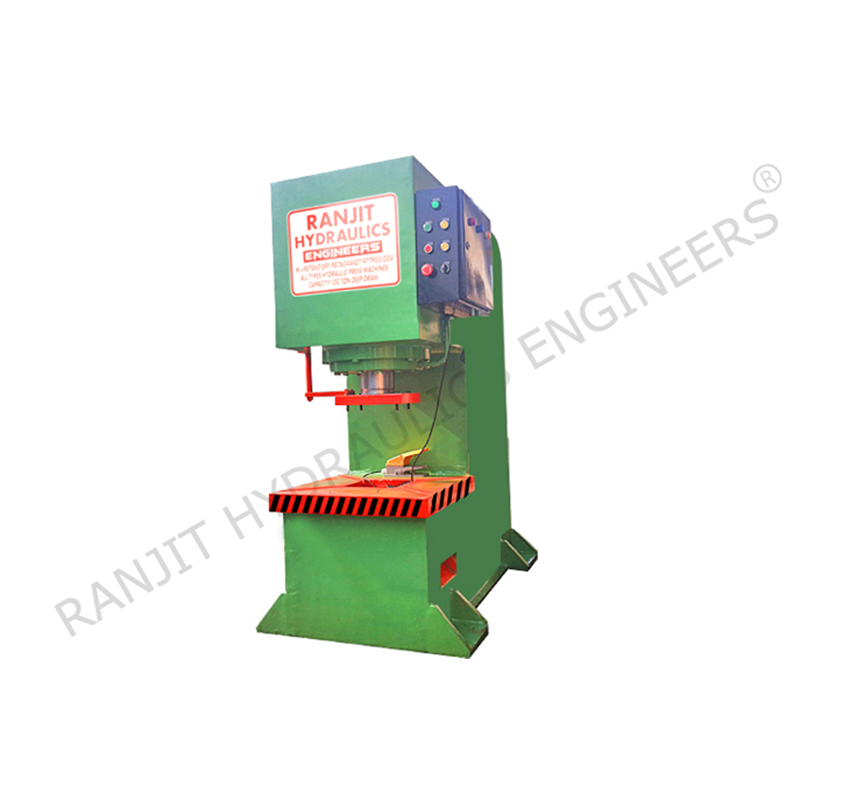

C-Frame Hydraulic Press

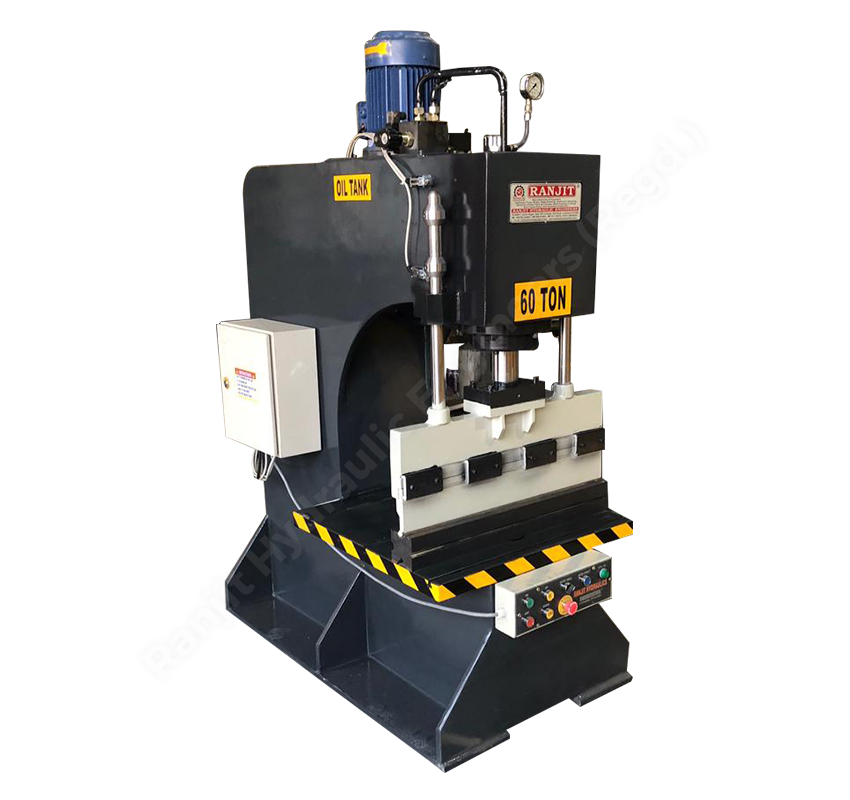

C-Frame Hydraulic Press (60 Ton)

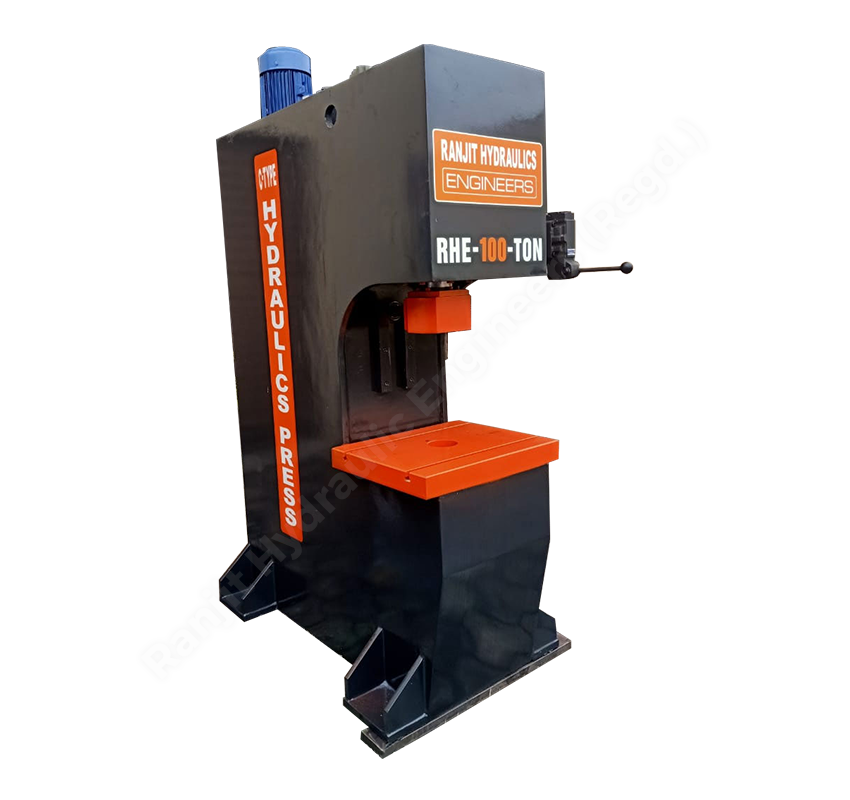

C-Frame Hydraulic Press (100 Ton)

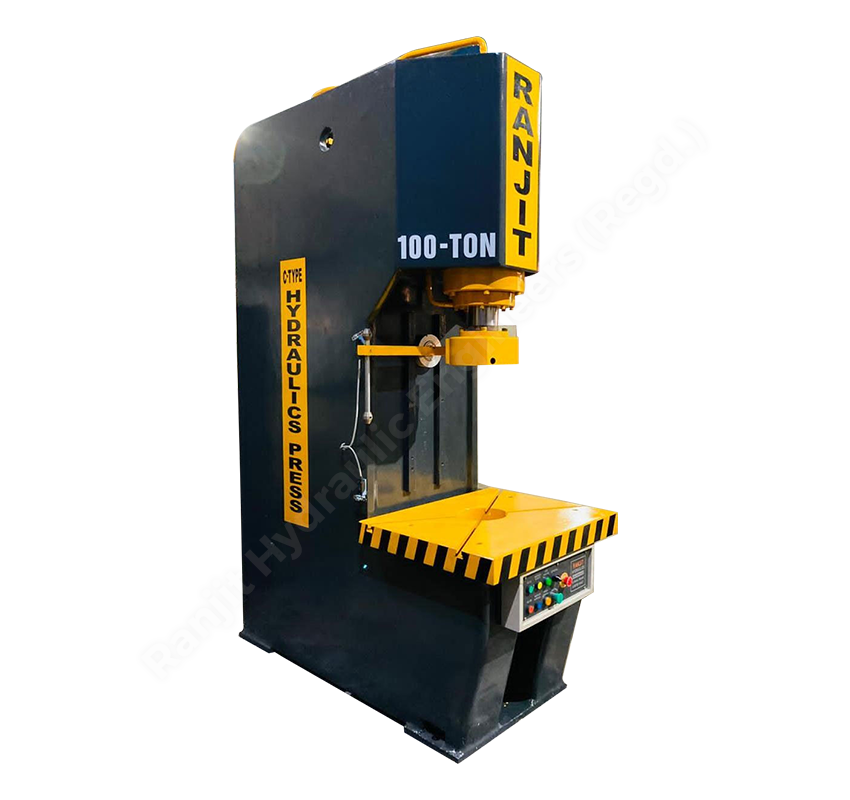

C-Frame Hydraulic Press (100 Ton)
C-Frame Hydraulic Press (100 Ton)
Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC). C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.
TECHNICAL PARAMETERS
| MODEL NO. | CAP. TON | PLATEN SIZE (MM) | DAY LIGHT GAP (MM) | STROKE (MM) | BORE/ RAM DIA (MM) | PRESSURE KG/CM² | MOTOR H.P |
| RCFP 10 | 50 | 500 X 400 | 250 | 200 | 150 | 160 | 3 |
| RCFP 25 | 75 | 600 X 500 | 300 | 250 | 180 | 170 | 3 |
| RCFP 50 | 100 | 700 X 500 | 400 | 300 | 200 | 210 | 7.5 |
| RCFP 75 | 150 | 800 X 600 | 400 | 300 | 250 | 210 | 7.5 |
| RCFP 100 | 200 | 900 X 700 | 500 | 400 | 300 | 210 | 10 |
| RCFP 150 | 250 | 1000 X 800 | 600 | 450 | 350 | 215 | 15 |
| RCFP 200 | 300 | 1000 X 1000 | 750 | 500 | 400 | 210 | 15 |
| RCFP300 | 400 | 1200X1000 | 800 | 500 | 500 | 210 | 20 |
Note:
» C-Frame hydraulic press can be used for simple pressing / coining / stamping / beinding etc. and also for die cushion, induction table & rubber molding.
» In case of die-cushion, die cushion cylinder with other system will be provided.
» In case of rubber molding, heating provision in working platen can be provided.
» According to the speed of the press, Motor H.P. can be changed
» C-Frame hydraulic presses can be supplied with
a. Die Cushion / Ejection
b. with pressure transmitter for precise pressure sensing
c. with load cell & L.V.D.T. for precise load & stroke control sensing
» Hydraulic Press over & above the specified capacity.
