High Speed Deep Drawing Press

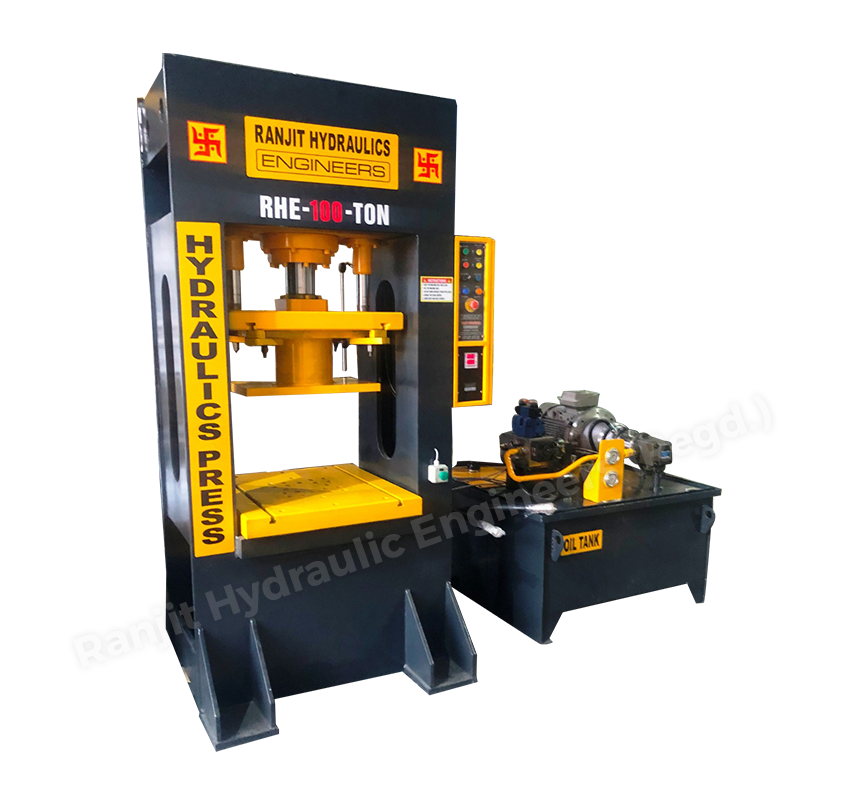

High Speed Deep Drawing Press (100 Ton)

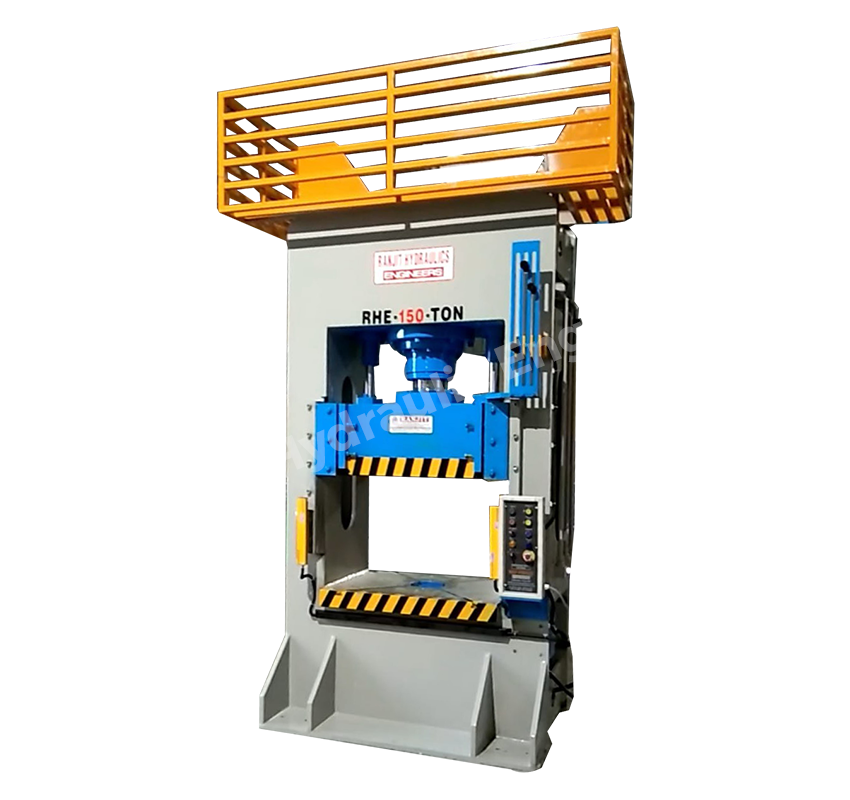

High Speed Deep Drawing Press (150 Ton)

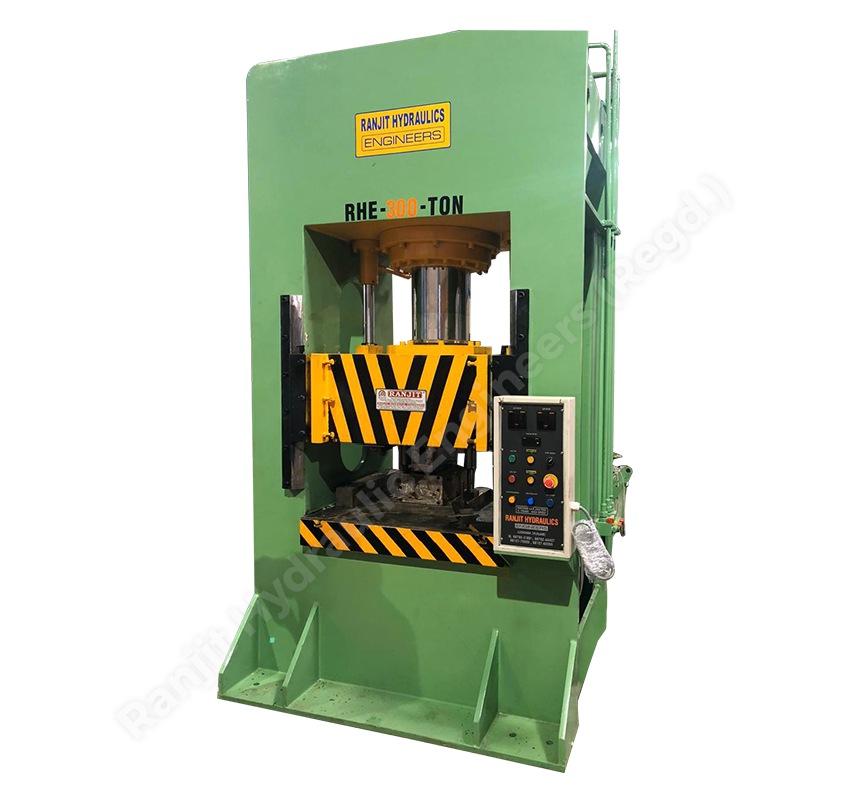

High Speed Deep Drawing Press (300 Ton)

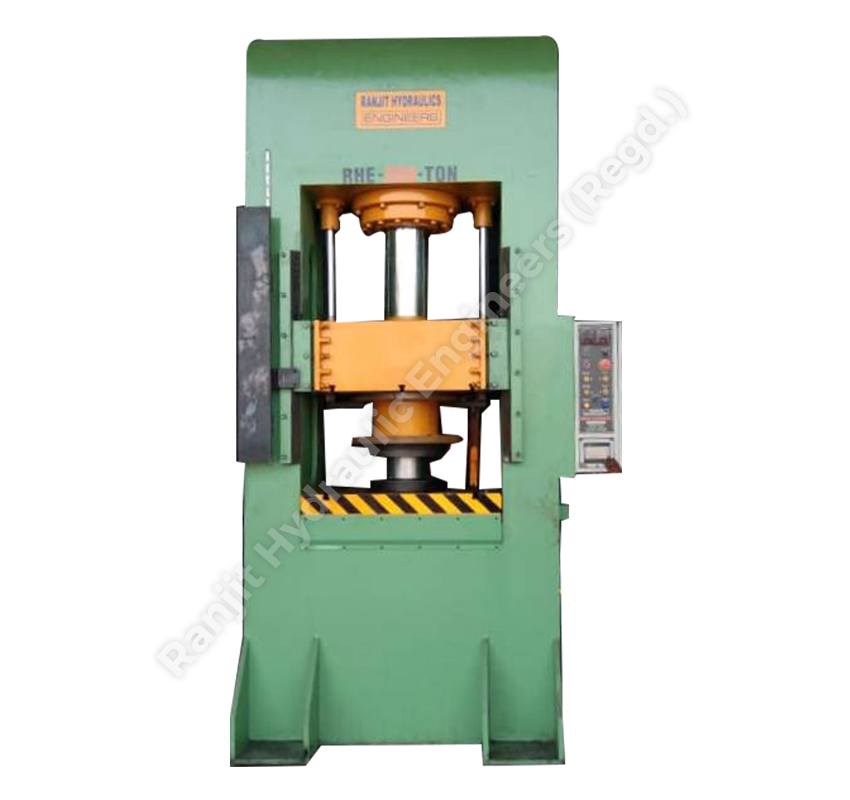

High Speed Deep Drawing Press (300 Ton)
High Speed Deep Drawing Press (600 Ton)
We offer heavy duty frame type deep draw press, hydraulic deep drawing presses, which are widely used in different industries to manufacture deep drawing components. These are heavy duty, high performance, pillar type hydraulic press for manufacturing deep drawing press components. Impeccably equipped with most advanced hydraulic & electronic (PLC) control. They are designed for high off center loads with heavy RAM force. Accurate slide guiding with full stroke length is helpful to provide the better accuracy & effective performance of the presses. Deep draw press is perfect for deep drawing automobile sheet metal components, oil tanks, stainless steel kitchen sinks, mudguards etc.
TECHNICAL PARAMETERS
| MODEL NO. | CAP. (TON) | PLATEN SIZE (mm) | DAY LIGHT GAP (mm) | MAIN CYL. STROKE (mm) | DIE CUSHION CAP. (TON) | DIE CUSHION CYL. STROKE (mm) | DIE CUSHION TABLE (mm) | MOTOR (H.P.) |
| RDDP-100 | 100 | 600x600 | 500 | 400 | 40 | 200 | 300x300 | 10 |
| RDDP-150 | 150 | 900x700 | 600 | 400 | 60 | 250 | 600x400 | 20 |
| RDDP-250 | 200 | 1000x800 | 700 | 450 | 80 | 300 | 700x400 | 20 |
| RDDP-400 | 300 | 1200x1000 | 800 | 500 | 150 | 300 | 800x600 | 25 |
| RDDP-500 | 400 | 1200x1200 | 800 | 500 | 200 | 350 | 900x600 | 30 |
| RDDP-600 | 500 | 1400x1200 | 900 | 650 | 200 | 400 | 900x600 | 30x2 |
| RDDP-800 | 600 | 1500x1500 | 1000 | 600 | 250 | 400 | 1000x800 | 30x2 |
| RDDP-1000 | 800 | 1800x1500 | 1200 | 750 | 300 | 450 | 1200x1000 | 40x2 |
| RDDP-1200 | 1000 | 1800x1800 | 1200 | 750 | 350 | 500 | 1500x1200 | 50x2 |
Note:
» Deep Draw Press is available upto 4000 Ton Capacity as per the customer's specific requirements
» Deep Drawing Press will be available with Pillar / Gate / Frame Type
» High Capacity press will be prefered in column type.
» The Press will be manufactured as per the customer requirement.
